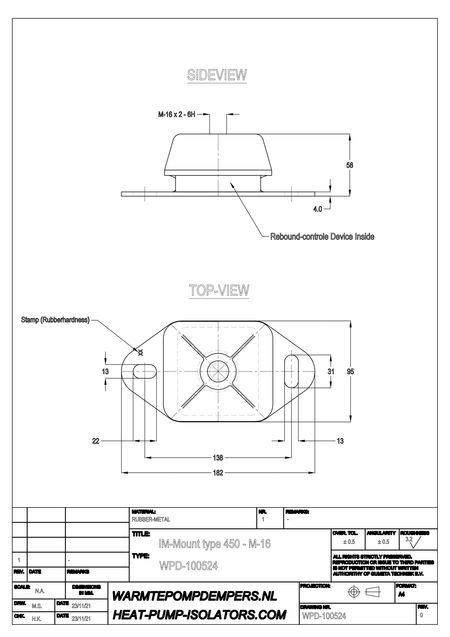

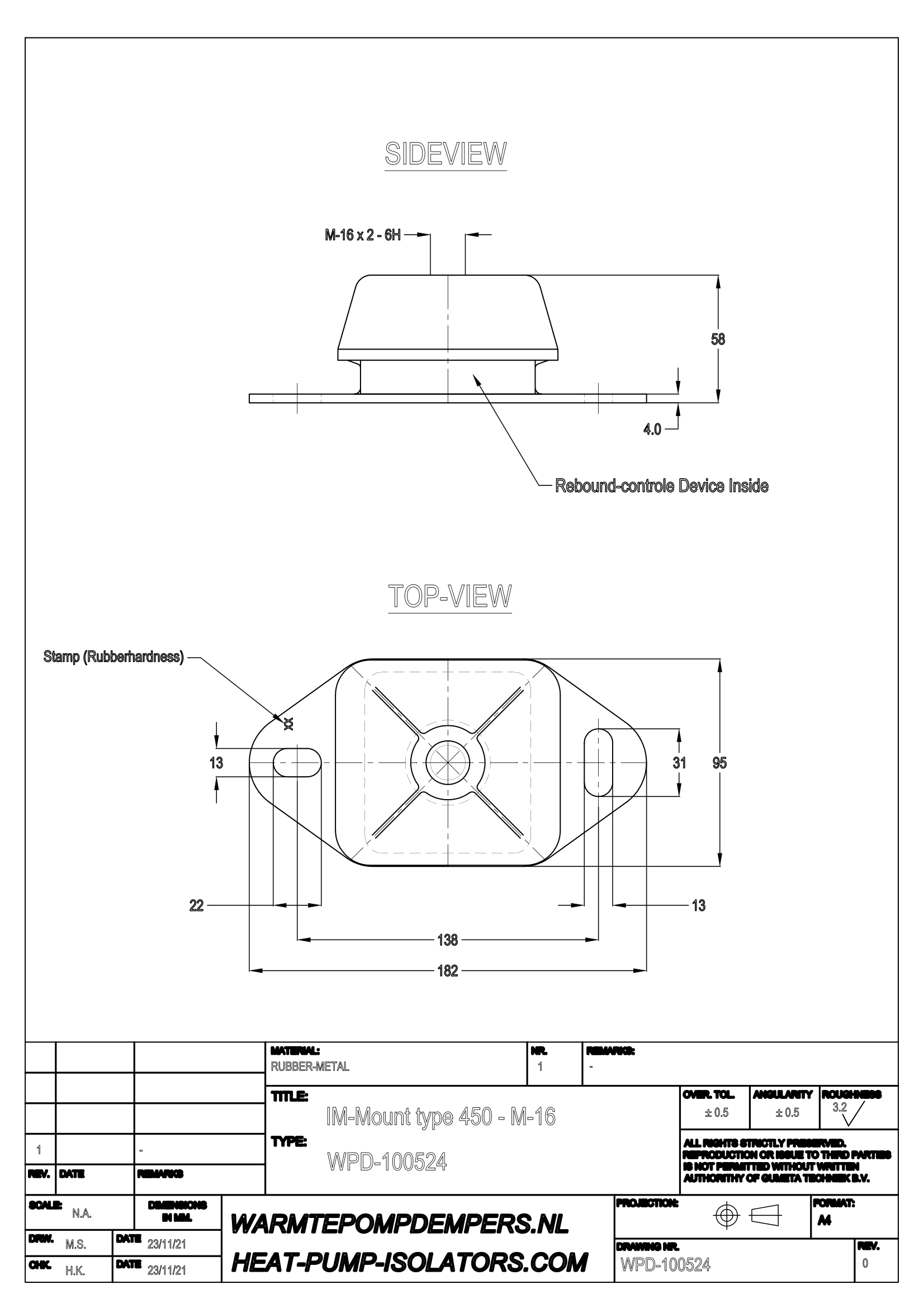

Vibration damper Air conditioning / Heat pump - IM-Mount type 450 - M16 - 35 shore - max. 100 kg
Couldn't load pickup availability
IM-Mounts are extremely suitable for the installation of heat pumps and refrigeration equipment. These compact vibration isolators are easy to install and offer high vibration isolation. The internal buffer ensures that the movement of the flexibly installed installation is limited in three directions to prevent deflection in case of large wind loads. The IM-Mounts are available in various rubber hardnesses and provided with a corrosion-resistant coating for outdoor installations. Height settings are of course also available, see section mounting materials.
Also available with M-12 mounting hole!
Article number: WPD-100524-35
Rubber hardness: 35 shore
Maximum allowable load (static): 100 kg (each)
Vibration isolation value: high
